Leader PYROS 3 Flame Generator – Full-Size Live-Fire Training System

PYROS 3 Flame Generator – Full-Size Live-Fire Training System

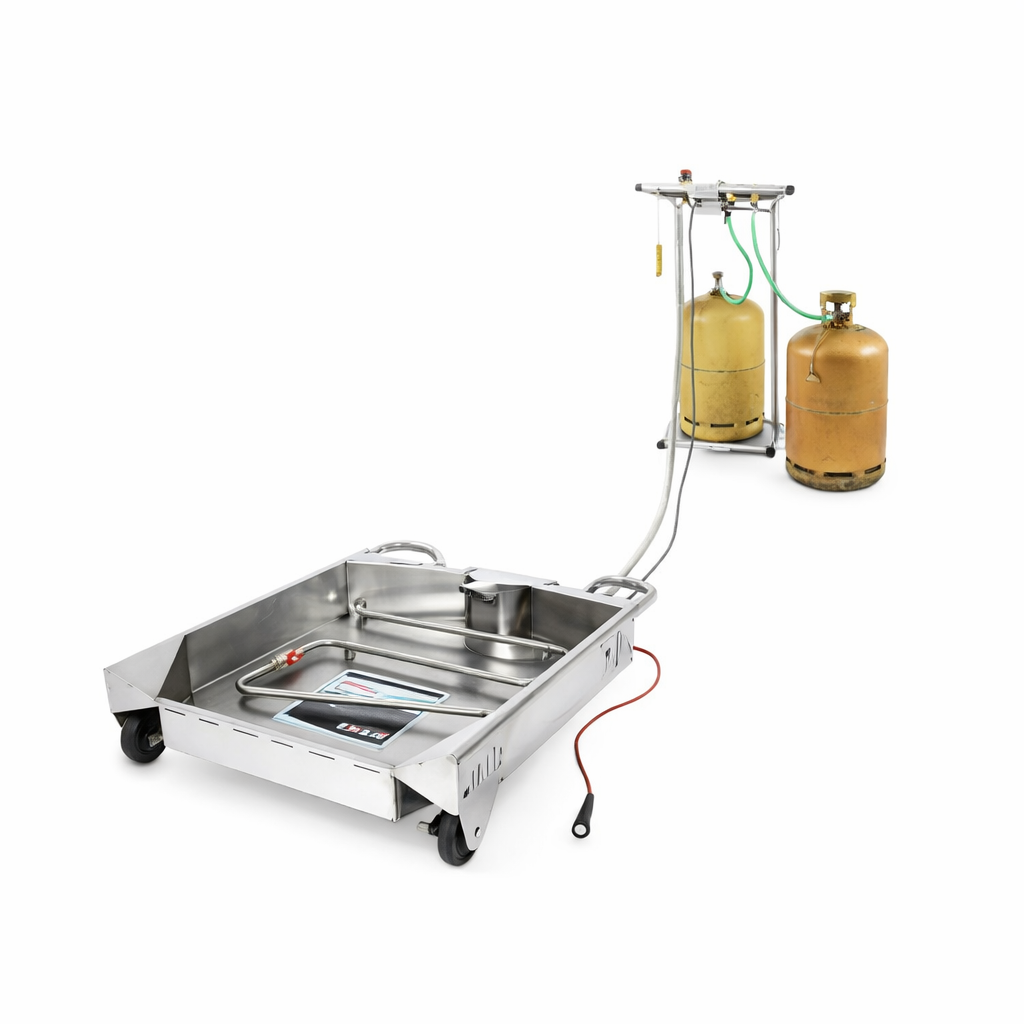

The PYROS 3 Flame Generator is an advanced, full-size fire trainer designed to deliver powerful, realistic flames for comprehensive live-fire firefighting training. With its large burn surface and high flame output, PYROS 3 enables trainees to safely practice real fire behavior, extinguishment techniques, and emergency procedures under controlled conditions.

Realistic Flame Simulation & Fire Behavior

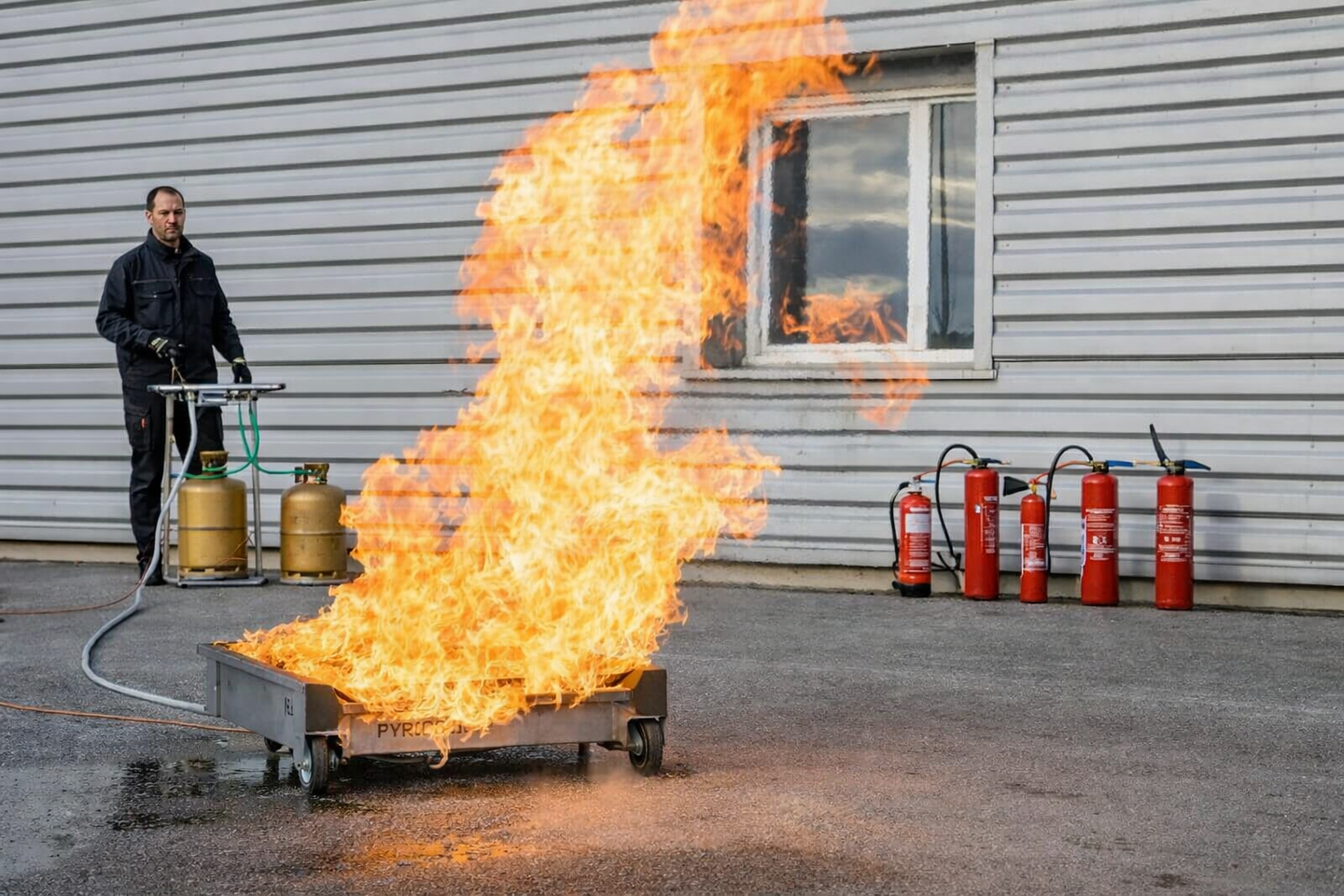

The water-filled tray produces an impressive oil-slick fire effect, distributing flames evenly across the entire fire surface. Flames can reach up to approximately 10 feet in height across a roughly 9 ft² surface area, providing high thermal radiation for realistic training scenarios.

Control & Safety Features

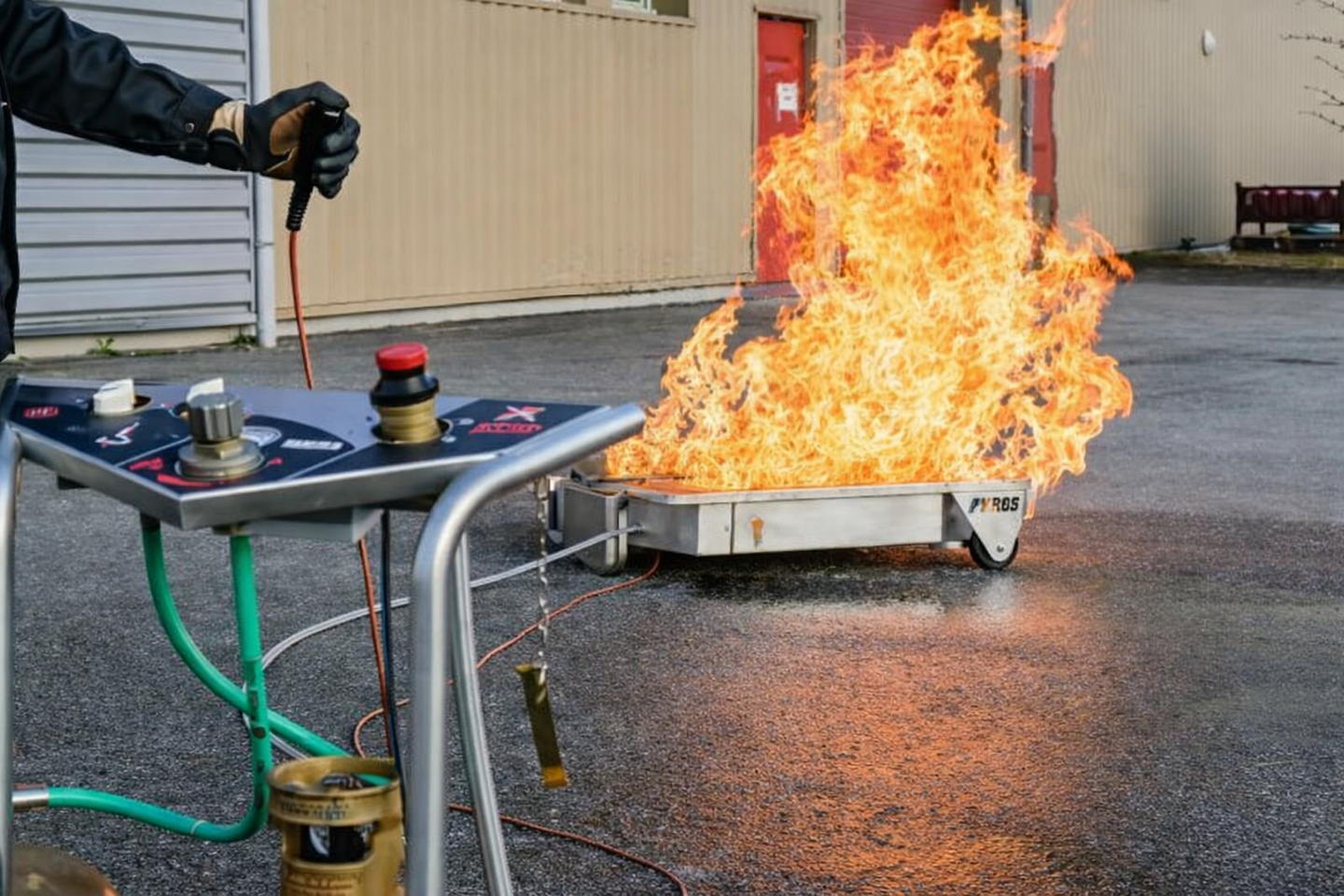

PYROS 3 includes both a wired and wireless remote control for ignition and flame extinguishing from a safe distance, allowing instructors and trainees to operate closer to the fire without sacrificing safety. The system is equipped with an integrated solenoid valve for automatic gas shutoff and an emergency stop button on the console for added protection.

Designed for Training & Portability

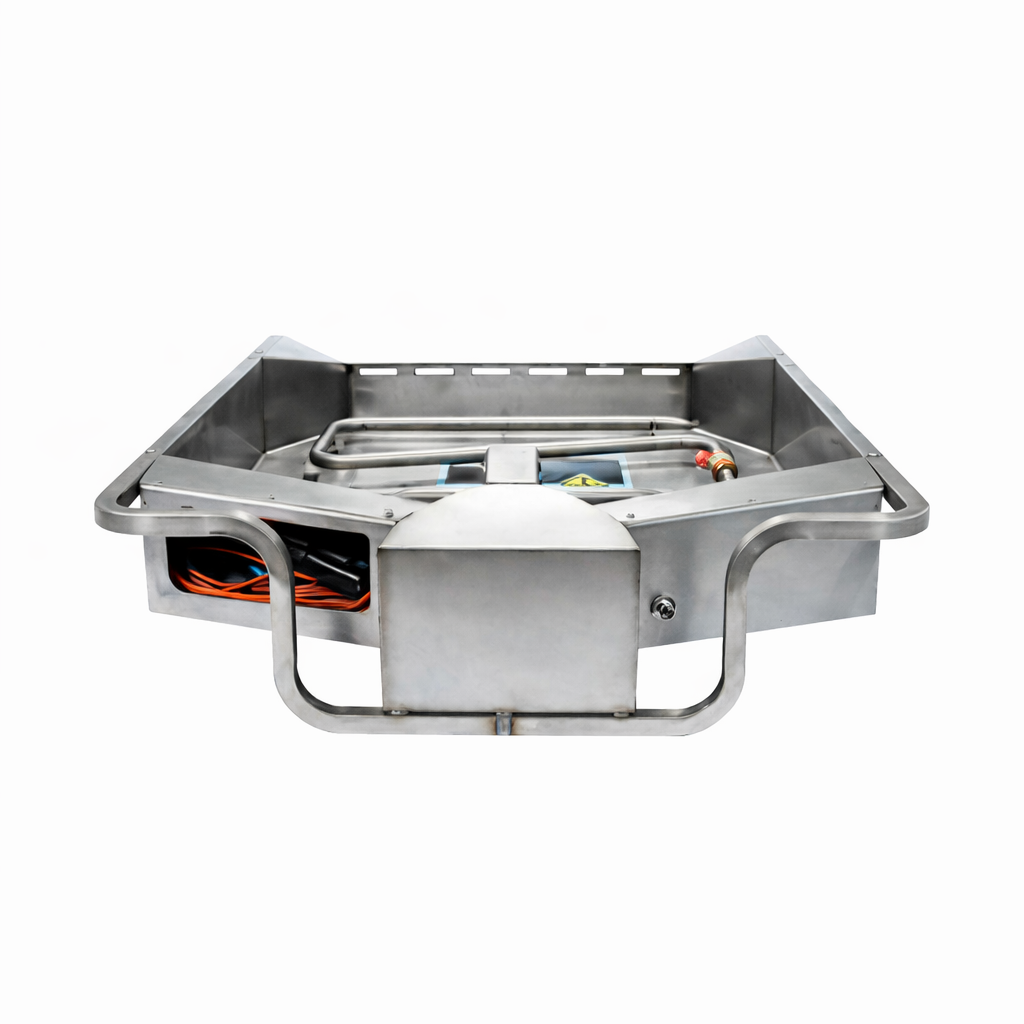

Built with stability and usability in mind, the PYROS 3 flame generator features a quick-drain water tray and engineered contact surface for secure placement on grass, dirt, or uneven terrain. Its size and weight make it suitable for transport by van or truck to training locations.

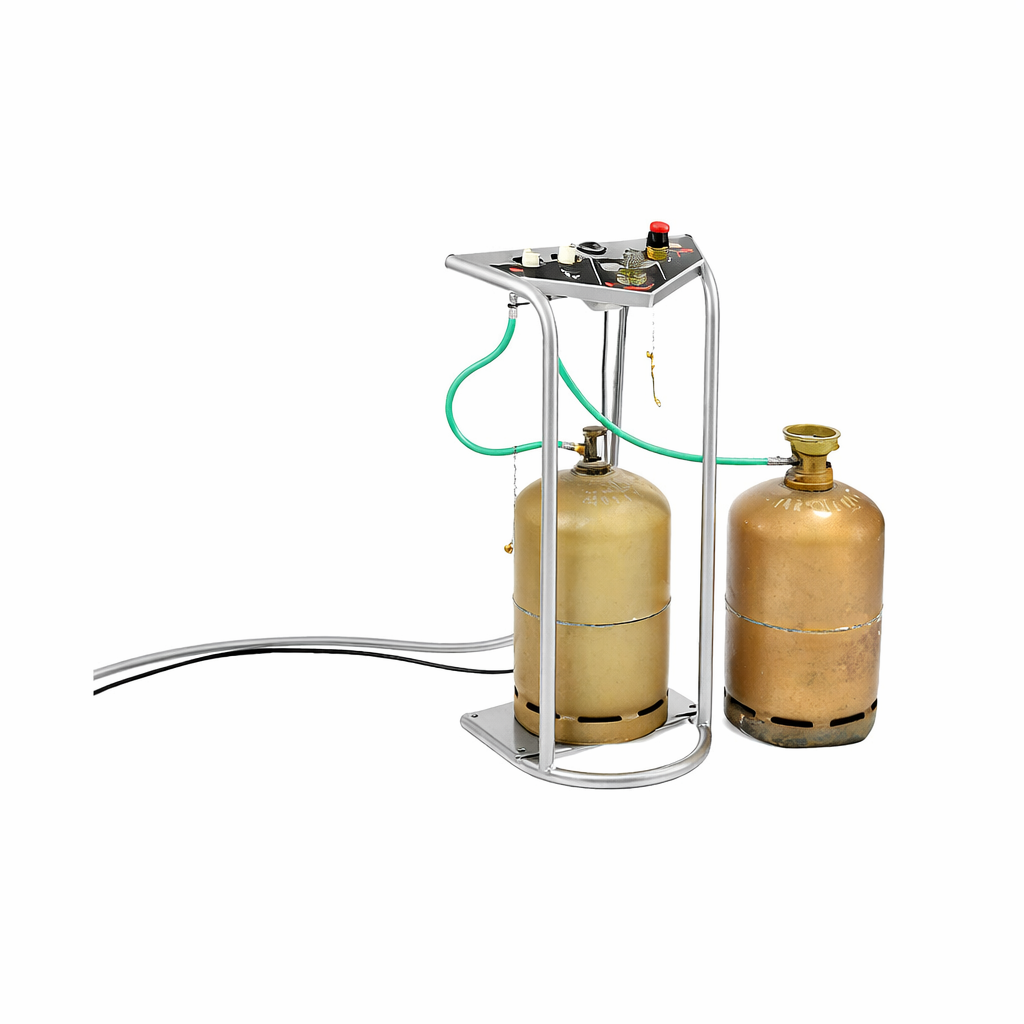

Console for Complete Fire Management

The integrated control console provides centralized management of gas supply, flame height, and pressure monitoring. It includes:

• Flame height/flow rate adjuster

• Continuous pressure gauge

• Connectors for one or two propane tanks

• Emergency stop button

• Console stored inside the water pan after training

Technical Specifications

• Fire Trainer Type: Water-based flame generator

• Flame Height: Up to ~10 ft (≈9.8 ft)

• Fire Surface Area: ~8.9 ft²

• Dimensions: ~46.1″ × 38″ × 10.2″

• Water Capacity: ~16.3 gallons

• Weight: ~90 lbs

• Remote Controls: 1 wired + 1 wireless

• Safety: Integrated solenoid valve + emergency stop

• Material: Stainless steel

Included Configuration

Notes

• Specifications and features are subject to change without notice.

• Live-fire training equipment must be used by qualified personnel following all safety codes and regulations.

• Optional accessories and modules are sold separately unless stated otherwise.

• Availability, compatibility, and lead times may vary—request a quote for details.

• Images may show optional configurations not included.
