Leader SENTRY B1 Stability Monitor

Leader SENTRY B1 Stability Monitor

The Leader SENTRY B1 Stability Monitor is a precision structural movement detection system designed for use in urban search and rescue (USAR), firefighting operations, and stability monitoring scenarios. It continuously measures linear movement using a laser beam and alerts responders when preset displacement thresholds are exceeded. Built for professional use, the SENTRY B1 provides reliable movement detection to enhance safety around unstable structures.

Operational Overview

The SENTRY B1 Stability Monitor uses a single laser beam to measure movement between a fixed reference point and a target surface. Movement beyond a preset threshold triggers an audible alarm, enabling rapid response and evacuation if necessary. The monitor can be used on unstable buildings, collapsed structures, shoring systems, trenches, and other environments where structural integrity is unknown or compromised. Its compact design and simple operation make it suitable for deployment in both field and urban environments.

Construction

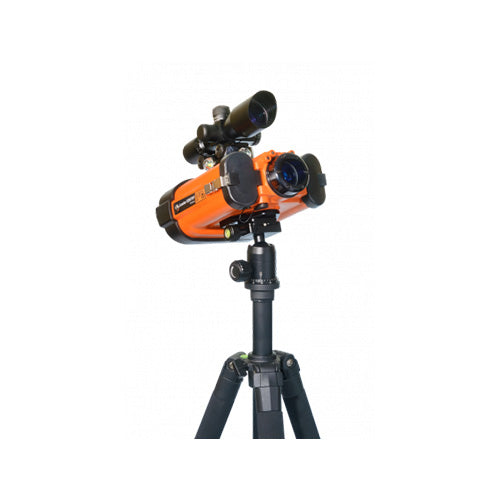

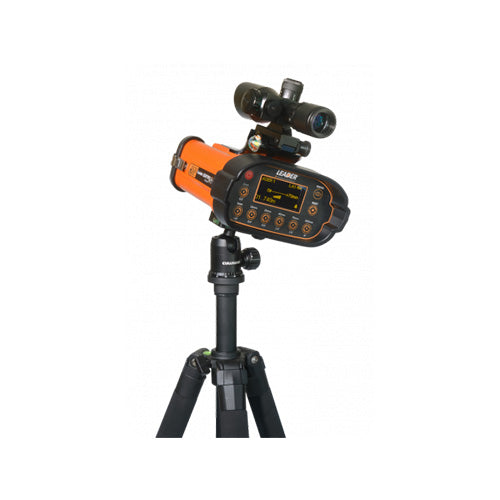

Constructed for durability and rugged use, the SENTRY B1 features a robust protective housing and a precision laser measurement system. The laser assembly provides long-range, accurate distance monitoring, while the mounting base and sighting tools allow secure positioning and alignment. The system is designed to withstand the challenges of rescue and firefighting operations.

Features

Based on manufacturer-published website information, the SENTRY B1 Stability Monitor includes the following features:

Continuous laser-based movement detection for structural monitoring
Audible alarm that activates when preset movement thresholds are exceeded
Adjustable movement threshold to suit situational needs
Compact and rugged design for field deployment
Simplified setup and alignment for rapid use
Laser distance measurement for accurate displacement monitoring

Applications

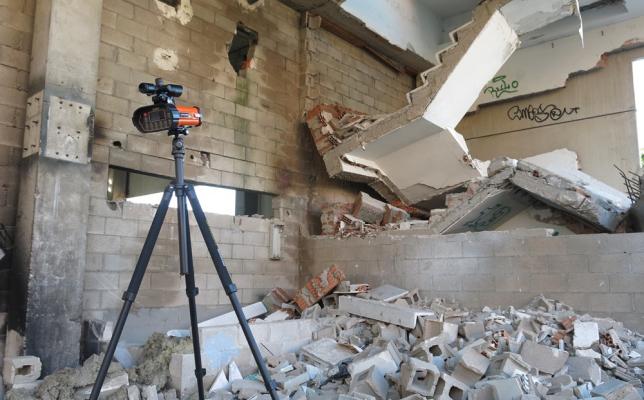

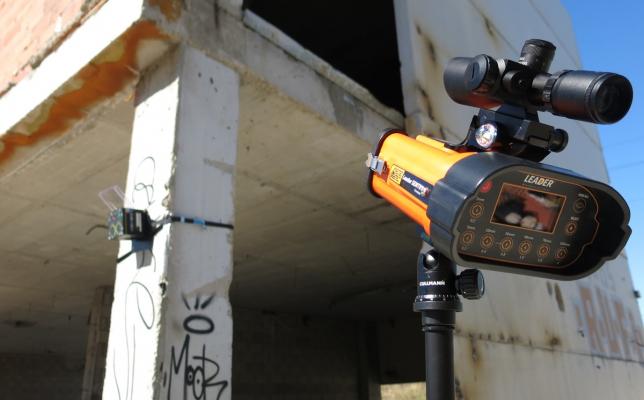

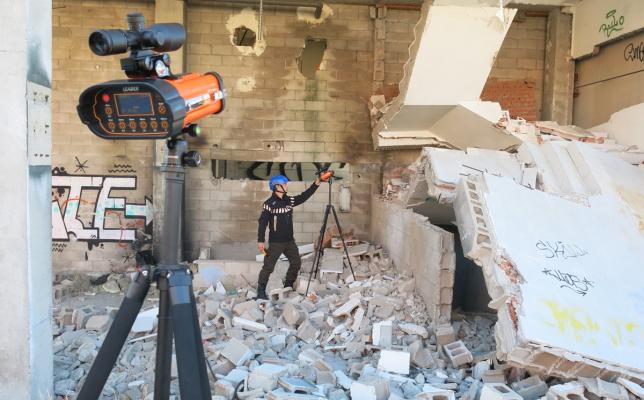

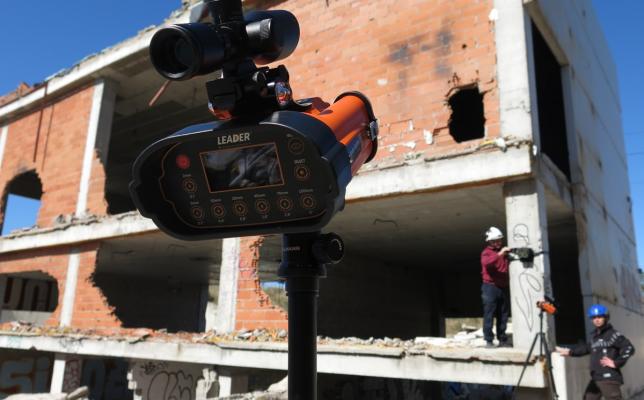

Monitoring unstable or compromised structures during rescue operations
Urban search and rescue (USAR) structural safety
Fireground collapse monitoring
Trench and excavation stability assessment
Temporary monitoring of shoring and bracing systems

Technical Specifications (General)

The following information is based on manufacturer-published website content:

Measurement method: Laser displacement detection
Movement threshold: Adjustable based on monitoring needs
Alarm: Audible alarm when threshold exceeded

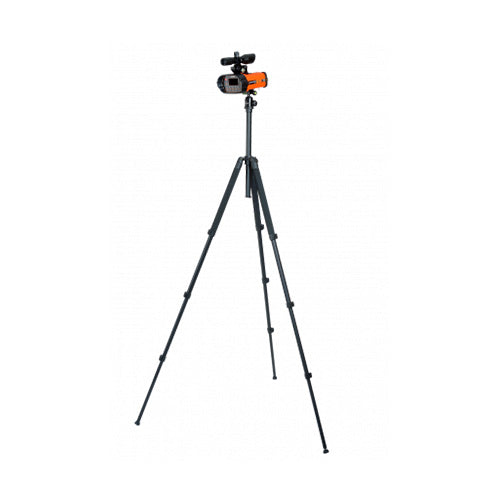

Deployment: Ground or tripod based placement
Power: Standard battery or line-power options (refer to manufacturer)
Operating conditions: Professional field environments

Available Configurations

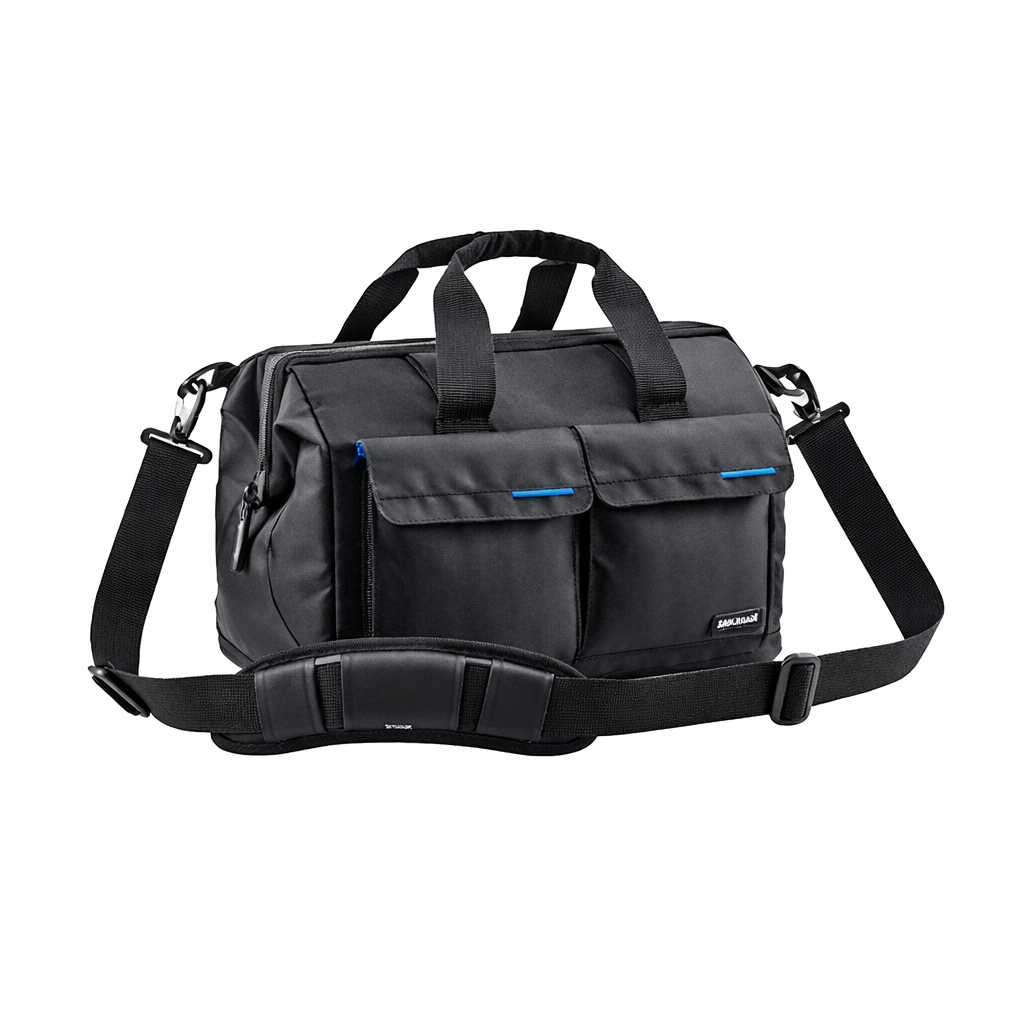

The SENTRY B1 is supplied as a single-beam stability monitoring system and includes a transport bag for storage and deployment

Notes

Specifications, configurations, and SKUs are based on publicly available manufacturer and distributor information and provided price sheet data. Where discrepancies exist, price sheet values take precedence. Mounting hardware, transport cases, and power adapters are not included unless specified. Product specifications and availability may be subject to change without notice.
