FIRE CLOAK - XL Electric Vehicle Fire Blanket - (39' × 29.5')

Fire Cloak™ XL is built for large electric and hybrid vehicle fire containment and uses advanced high-temperature composite fabrics—FBM1290 (grey) and FBM1291R (red)—each coated on both sides with a fire-resistant silicone layer. The blanket is assembled from four grey outer panels surrounding a central red section, providing clear visual orientation for quick and correct deployment.

Six heavy-duty, fire-resistant pull handles—positioned at all four corners and mid-length along both sides—feature triple-layer reinforced anchor points for added strength. All stitching is completed with high-temperature-rated thread to withstand the severe thermal environments encountered during EV fire containment.

Dimensions: 12 m × 9 m (40 ft × 30 ft)
Weight: Approx. 33 kg (including storage bag)

Base Material Specification – FBM1290 & FBM1291R

Material Properties

• Weight: 200 g/m² + 60 g/m² (±5%)

• Silicone Coating: 30 g/m² per side (±10%)

• Tensile Strength (Warp): 1000 N (±2%)

• Tensile Strength (Weft): 920 N (±2%)

• Tear Strength: >128 N (±2%)

• Burst Strength: >1000 kPa (±4%)

Fire Performance & Certifications

• BS 476-20/22:1987 (similar to ASTM E119) — Withstood 1,000°C (1,832°F) furnace exposure for 90 minutes

• ASTM D6413 / D6413M-22 — Vertical flame test passed with the highest rating

• NFPA 701 — Passed and certified compliant

• ISO EN 13501-1:2018 — Classified A2, s1, d0, indicating non-combustible performance, minimal smoke, and no flaming droplets

Thermal Runaway Fire Control

Lithium-ion battery failures in electric or hybrid vehicles can initiate thermal runaway, where a compromised cell overheats and ignites, triggering a rapid chain reaction among adjacent cells. These events generate extreme heat and are self-sustaining—making them resistant to extinguishment by water or standard firefighting agents.

The Fire Cloak™ XL supports containment by:

• Limiting oxygen flow to the burning battery system

• Reducing flame energy and heat radiation

• Slowing thermal propagation between cells

• Helping protect nearby vehicles, structures, and infrastructure

Because containment—not extinguishment—is the safest strategy for EV thermal runaway events, the Fire Cloak™ XL is suited for use in car parks, charging facilities, tunnels, ferry vessels, airports, and similar high-risk locations.

Deployment

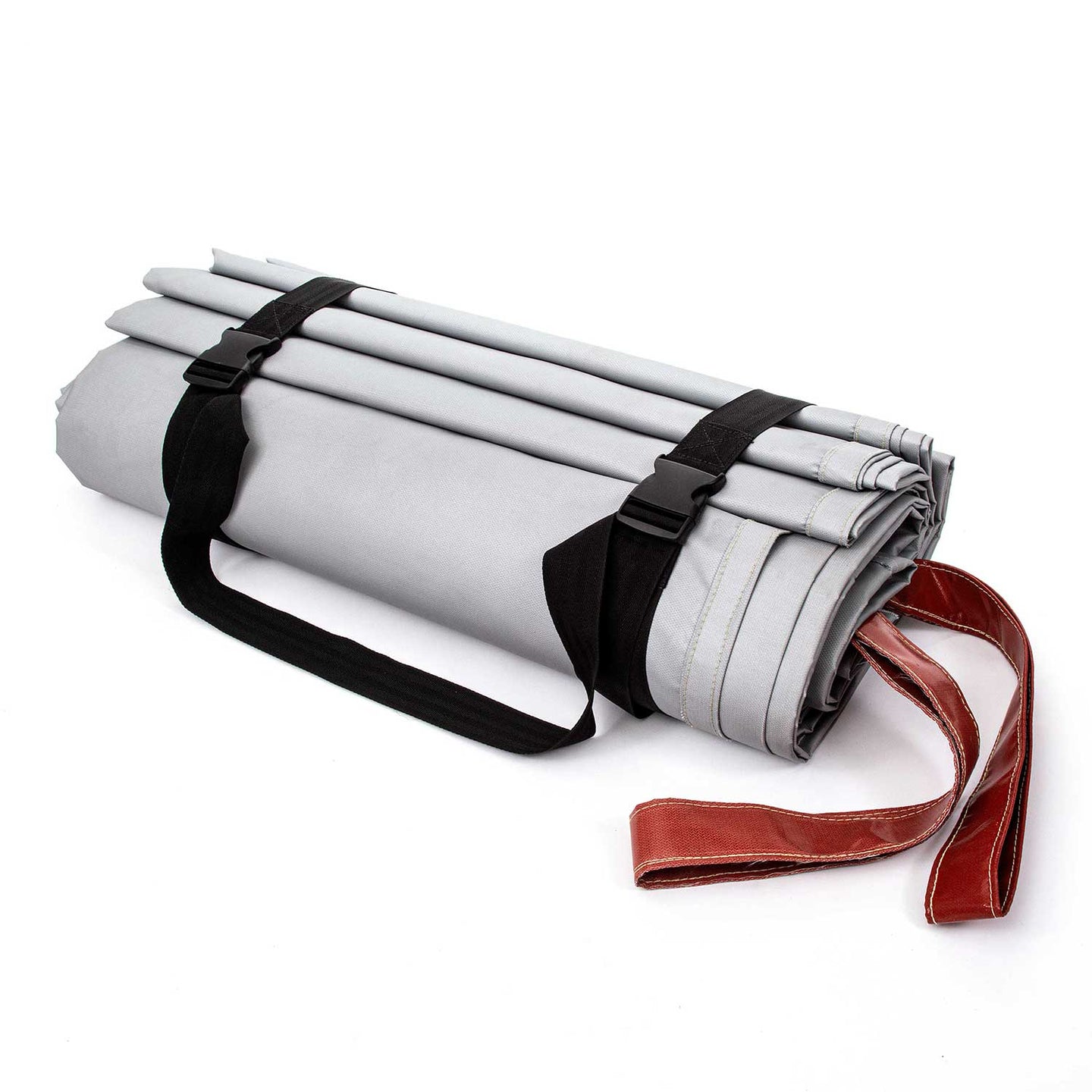

The blanket can be positioned rapidly by two trained responders and is supplied in a rugged storage holdall for easy transport and ready access during emergency operations.

Future Scheduled Testing (November 2024)
Intertek Testing Services (UK) Ltd

• Hydrocarbon / oil resistance

• Air-permeability performance

• Hydrostatic pressure assessment

HORIBA MIRA (UK)

• Full-scale live burn test on a large electric panel van driven into advanced thermal runaway, followed by containment using the Fire Cloak™ XL
