Fire Cloak™ - Lithium Battery Fire Limitation Blanket - (13' x 10')

This lithium battery fire blanket is built from an ultra-high–silica fabric and coated on both sides with a durable, fire-resistant grey silicone layer. Reinforced corner sections include heavy-duty silicone-fabric pull handles for safe positioning, and all seams are stitched with high-temperature-resistant thread to maintain strength during emergency use.

Dimensions: 4 × 3 meters (13 ft × 10 ft)
Weight: Approx. 10.2 kg (including storage holdall)

Material Specification
Tested in accordance with BS EN 112127:1998

Base Fabric Properties

• Weight: 700 g/m² (±5%)

• Thickness: 0.65 mm

• Fire-Resistant Coating: 280 g/m² total (140 g/m² per side) (±10%)

Mechanical Strength

• Tensile Strength (Warp) — ISO 4606:1995: 4000 N / 5 cm

• Tensile Strength (Weft) — ISO 4606:1995: 2000 N / 5 cm

Thermal Performance

• Temperature Resistance: Withstands 1,000°C (unstressed)

• Melting Point: >1,600°C

• Shrinkage: <7% after 4 hours at 900°C

Material Test Data

• Hydrostatic Pressure (BS EN ISO 811:2018): 44 cm H₂O (avg.)

• Air Permeability (BS EN ISO 9237:1995): 0.06 mm/sec (avg.)

• Water Vapour Permeability (BS 7209:1990): 187.2 g/m² (WVPI 22.0%)

Fire Classification Insight

While formal BS EN 13501-1:2018 testing is pending, manufacturer analysis indicates that the LBB6143 blanket material is expected to reach an A1 Reaction to Fire rating.

Status as of January 2024.

Purpose & Use Case

This blanket is engineered to contain and manage lithium-ion battery fires, one of the most hazardous types of incidents due to the self-sustaining reaction known as thermal runaway. In these scenarios, a failed cell overheats, ignites, and spreads heat to neighboring cells—often exceeding 1,000°C and resisting standard extinguishing methods because the battery generates its own fuel and oxygen.

Why This Blanket Is Effective

Deploying a lithium battery fire blanket helps to:

• Restrict oxygen supply to the burning cells

• Limit flame spread and combustion

• Lower peak temperatures more quickly

• Provide protection to surrounding assets and personnel

• Stabilize the scene while awaiting specialized cooling or suppression measures

Deployment

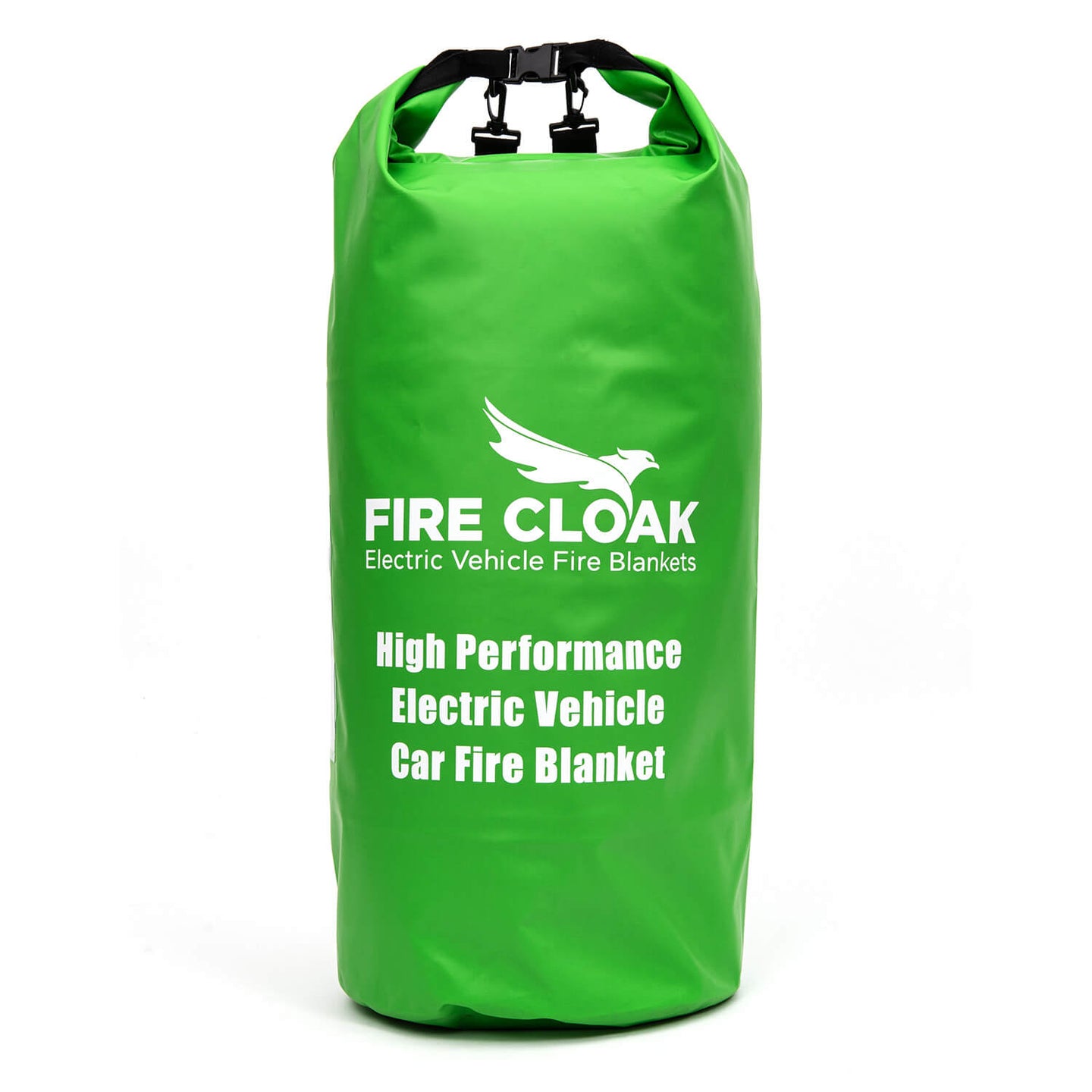

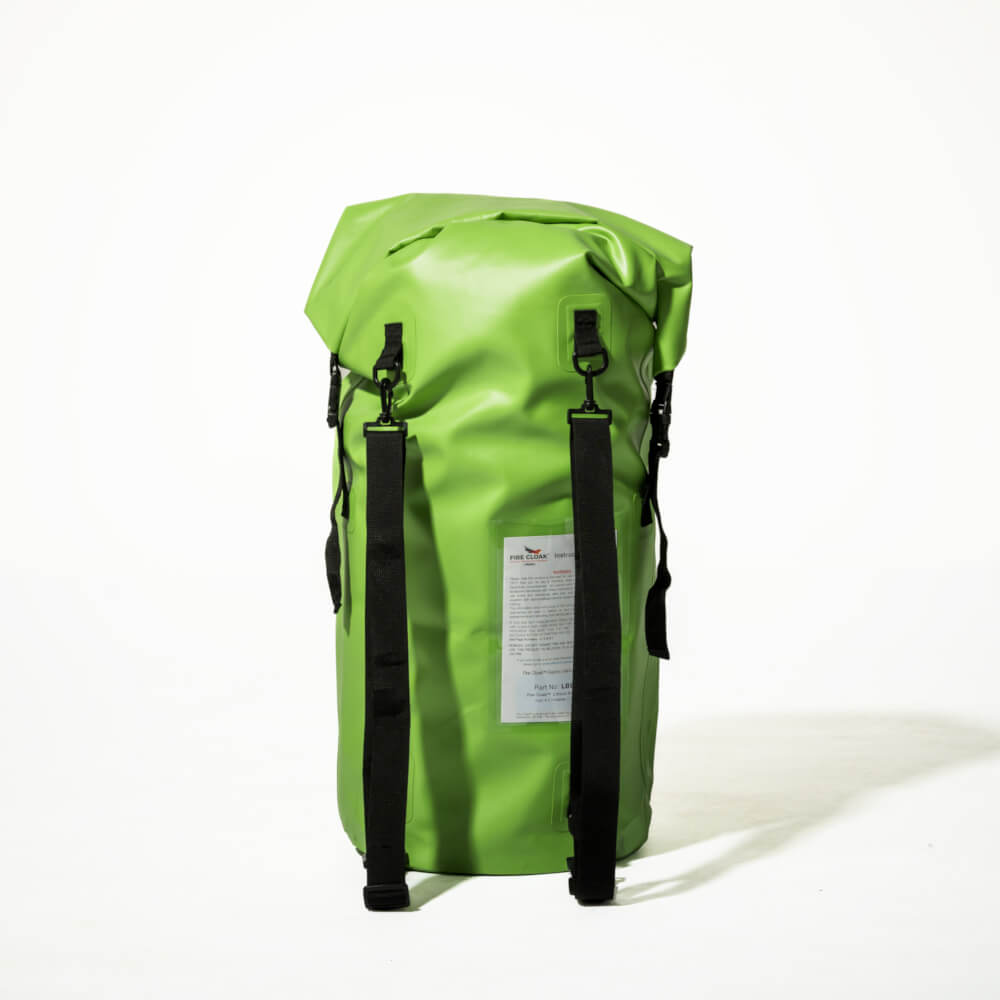

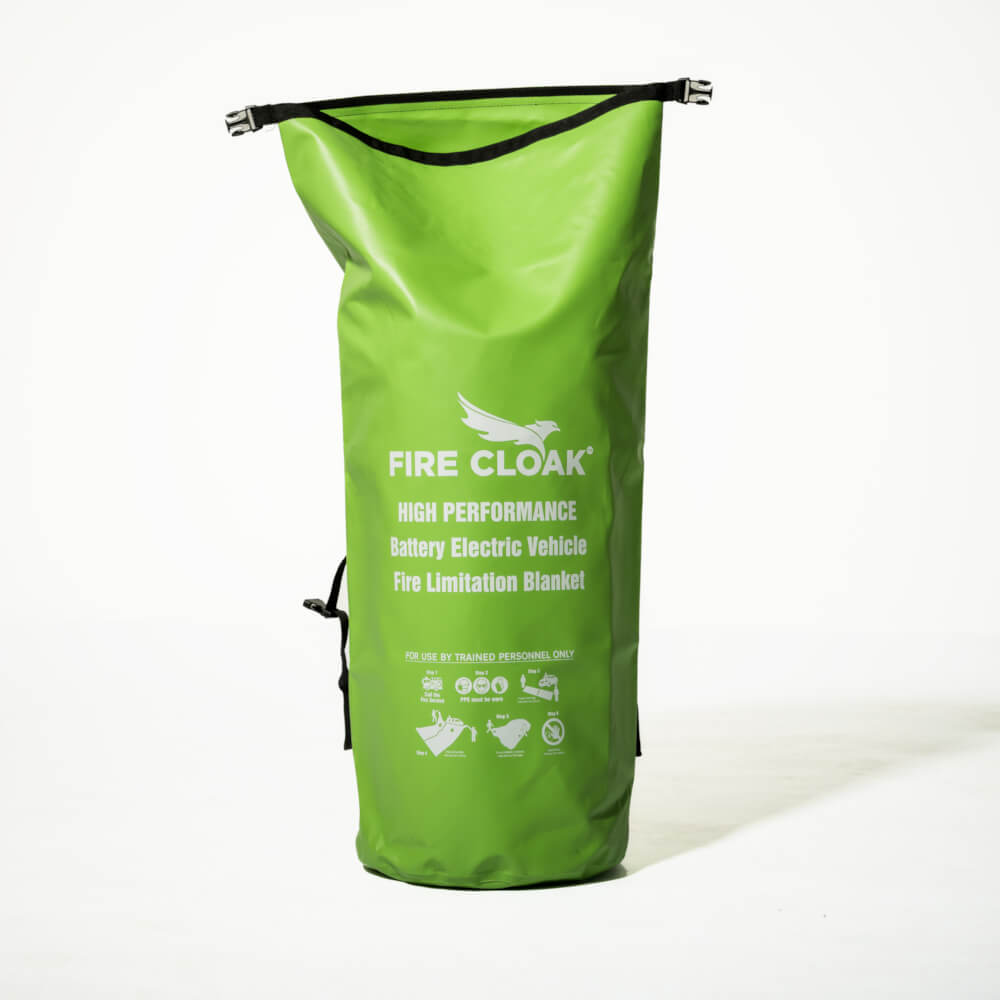

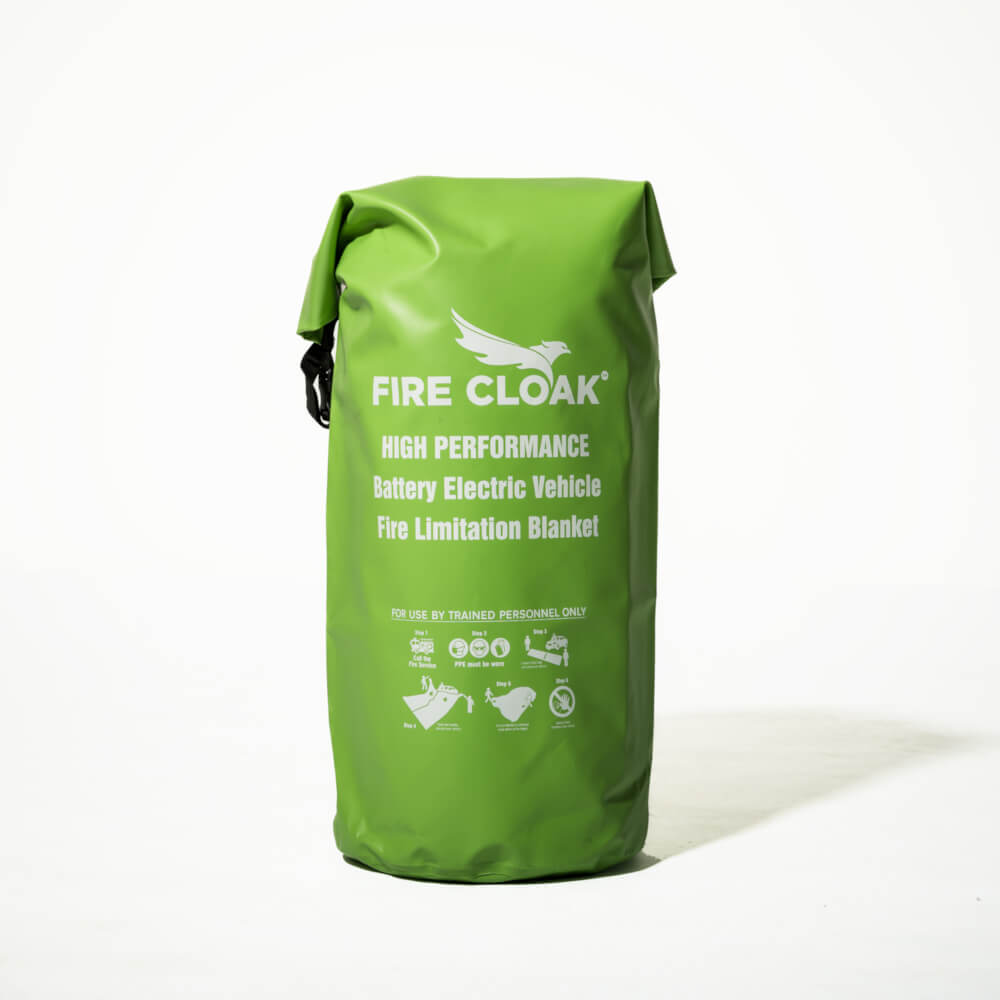

Two trained operators can set the blanket in place quickly, and it is supplied in a rugged storage holdall for straightforward transport, staging, and long-term storage.
